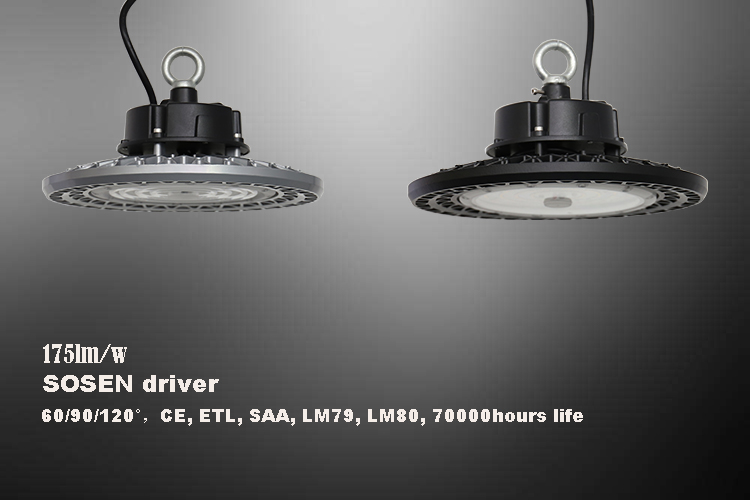

H003F series UFO high bay light work from 60W-240W.Classic outlook with excellent system efficiency up to 180lm/w. Patented heat dissipation design with lower weight. Using Meanwell or Sosen driver,Lumileds SMD3030 led chip as light source,high light performance.
| Product specification | |
| Model No. | SW-H003F-W200 |
| Rated Power | 200W |
| Input Voltage | AC100-277V, 50/60Hz; 0.37A(at 220v) |
| PF: | >0.97 |
| IP Grade: | IP65 |
| THD: | 10%（at 230v, 50Hz) |
| LED Parameters | |
| LED chip | SMD3030 LED |
| Light Efficiency | 140-150lm/w or 170-180Lm/W |
| Color Temperature | 2700-7000k |
| CRI | >70Ra or 80Ra |
| Beam Angle | 60°, 90°, 120° |
| Mechanical Specification | |
| Body Material | Aluminum |
| Lens Material | PC lens |
| Body color | Grey,black |
| Operating Temperature | -35℃ – 50℃ |
| Net W./Gross W | 4.3KGS /5.20KGS(one piece) |
| Packing size | 45x45x20CM, One piece in one carton |
| Warranty | 5 years warranty |
| Certificates | CE, RoHS, SAA, ETL,DLC,LM79, TM21, LM80 |
Features of UFO LED high bay lights
1) nice design, higher efficiency, longer life;
2) With well-known brand led chip, and the LEDs are on large size PCB, the junction temperature on LED can be much lower, this guaranteed lower lumen decay and longer life of LED;
3) Top quality aluminum radiator , excellent heating dissipation;
4) Do not need extra reflector, the international shipping cost can be much cheaper;
5) Three different beam angle: 60°,90°120
LED high bay light widely used in warehouse, workshop, supermarkets, exhibition room, hall, toll station, gas station, residential areas, industrial areas, etc.
Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.
One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.
Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.
Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
