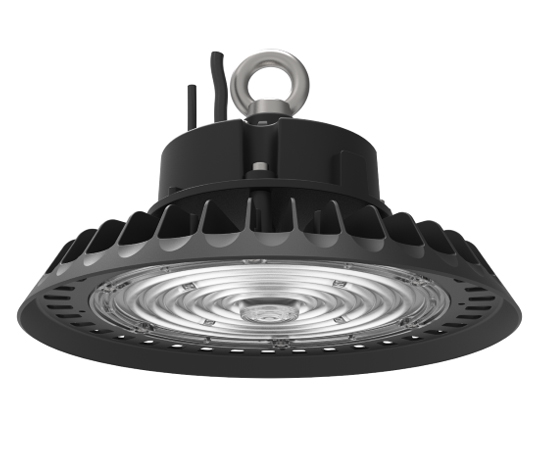

UFO Led high bay light 150w



H003F series UFO high bay light work from 60W-240W.Classic outlook with excellent system efficiency up to 180lm/w. Patented heat dissipation design with lower weight. Using Meanwell or Sosen driver,Lumileds SMD3030 led chip as light source,high light performance.


  • High light efficiency 140-150lm/w or 170-180lm/w
  • 0-10v dimmble option
  • IP65 waterproof
  • 5-year warranty
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-H003F-W150
Rated Power 150W
Input Voltage AC100-277V, 50/60Hz; 0.37A(at 220v)
PF: >0.97
IP Grade: IP65
THD: 10%(at 230v, 50Hz)
LED Parameters
LED chip SMD3030 LED
Light Efficiency 140-150lm/w or 170-180Lm/W
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle  60°, 90°, 120°
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Grey,black
Operating Temperature -35℃ – 50℃
Net W./Gross W 3.5KGS /4.20KGS(one piece)
Packing size 39x39x19CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS, SAA, ETL,DLC,LM79, TM21, LM80

Features of UFO LED high bay lights

1) nice design, higher efficiency, longer life;

2) With well-known brand led chip, and the LEDs are on large size PCB, the junction temperature on LED can be much lower, this guaranteed lower lumen decay and longer life of LED;

3) Top quality aluminum radiator , excellent heating dissipation;

4) Do not need extra reflector, the international shipping cost can be much cheaper;

5) Three different beam angle: 60°,90°120

PC reflector of led high bay light






LED high bay light widely used in warehouse, workshop, supermarkets, exhibition room, hall, toll station, gas station, residential areas, industrial areas, etc.

application high bay 1

application led high bay 1

ufo high bay application

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.


One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.


Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
