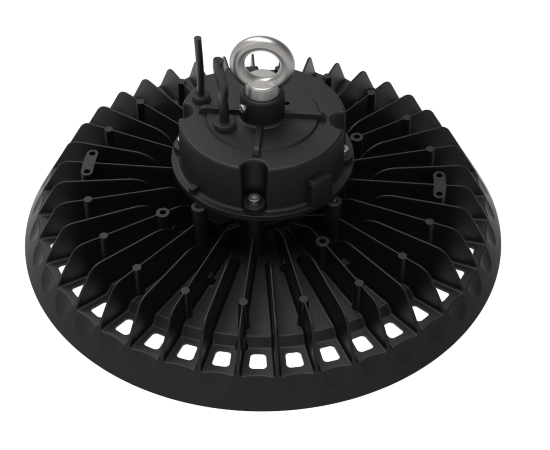

  • 150W BAY LIGHT
  • 150W LED HIGH BAY
  • 200W HIGH BAY
  • 150W BAY LIGHT

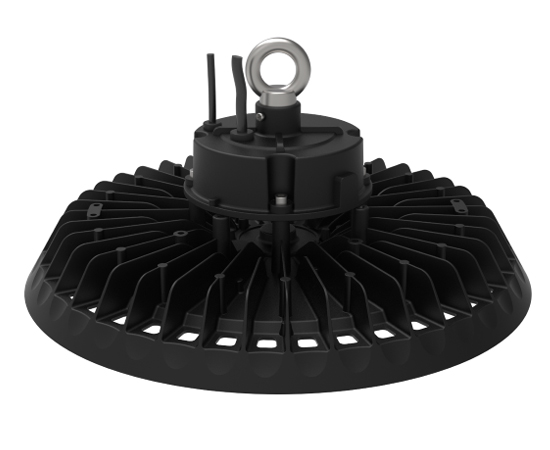

2022 NEW UFO LED HIGH BAY 200W

100

Description

This is our latest style in 2022, which can do 80W-240W. The biggest feature of this model is high lumens and high luminous efficiency, which can be 180-190Lm/W and 150-160Lm/W respectively. Another feature is that the price has dropped a lot compared to the old model, and now the new model is enthusiastically ordered by new and old customers.

Highlights

  • High light efficiency 180-190Lm/W or 150-160Lm/W
  • Meanwell or Sosen driver for optional
  • IP65/IP66 waterproof
  • 5-year warranty
icon01
icon03
icon05
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-H003J-W200
Rated Power 200W
Input Voltage AC100-277V, 50/60Hz, 0.91A(at 230v)
PF: >0.97
IP Grade: IP65
THD: 10%(at 230v, 50Hz)
LED Parameters
LED chip SMD2835 LED
Light Efficiency 150-160lm/w or 180-190Lm/W
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle  60°, 90°, 120°
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Black
Operating Temperature -35℃ – 50℃
Net W./Gross W 2.9KGS / 3.50KGS(one piece)
Packing size 44*44*18CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS, SAA,LM79, TM21, LM80, ERP

Features of UFO LED high bay lights

1) nice design, higher efficiency, longer life;

2) With well-known brand led chip, and the LEDs are on large size PCB, the junction temperature on LED can be much lower, this guaranteed lower lumen decay and longer life of LED;

3) Top quality aluminum radiator , excellent heating dissipation;

4) Do not need extra reflector, the international shipping cost can be much cheaper;

5) Three different beam angle: 60°,90°120

200w.6 s

SIZE 200W

H2d7c8f2ec57d473a9a457f058d8084602

LED high bay light widely used in warehouse, workshop, supermarkets, exhibition room, hall, toll station, gas station, residential areas, industrial areas, etc.

application high bay 1

application led high bay 1

ufo high bay application

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.

Customization

One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.

Warranty

Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
