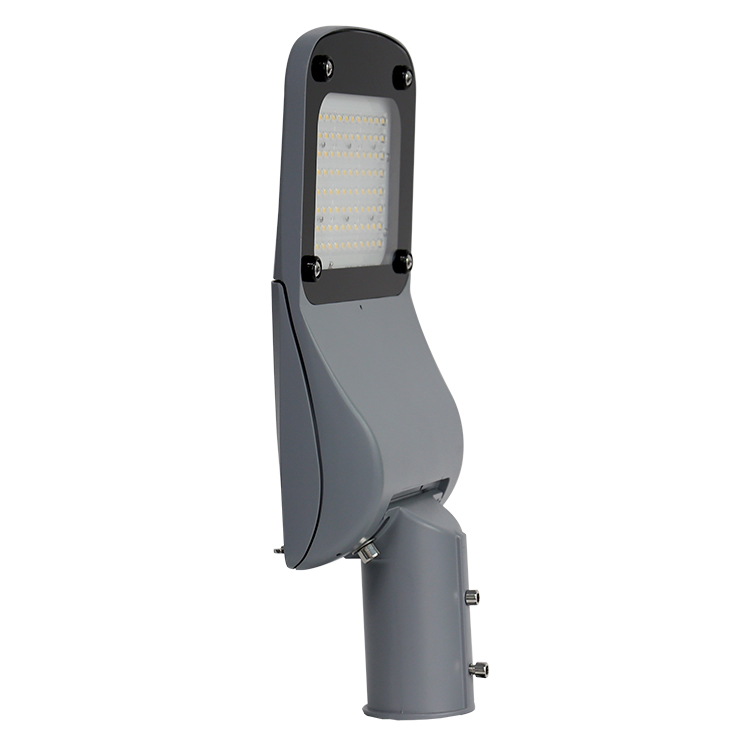

SL507B Led street light 100w

100

Description

1.The overall flat ultra-thin design,exquisite appearance,generous and elegant. 2.Light controller can be installed to facilitate light control and ther intelligent control 3With movable handle,the installation angle is adjustable from 0 to 90°;the lamp housing can be opened manually,and the power is automatically cut off for easy mantenance. 4.respirator design for better heat dissipation.

Highlights

  • Using Lumileds SMD3030 led chip,high light efficiency can reach to 140-150lm/W.
  • Meanwell or Sosen driver for option,5 years warranty
  • Manual buckle design,tool free opening and maintenance.
  • Certificates of CB, ENEC, CE, LVD, RoHS, LM79, LM80, ERP, IK66, IK08
icon01
icon03
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-SL507B-W100
Rated Power 100W
Input Voltage AC100-277V, 50/60Hz;0.23A(at 220V)
PF: >0.97
IP Grade: IP66
THD: 8%(at 230v, 50Hz)
Surge protection: 20KV
LED Parameters
LED chip SMD3030 LED
Light Efficiency 140-150lm/w
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle Type 2, Type 3, Type 4, 60°, 90°
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Grey
Operating Temperature -35℃ – 50℃
Net W./Gross W 4.0KGS / 5.0KGS(one piece)
Packing size 66*29*18cm, One piece in one carton
Warranty 5 years warranty
Certificates CB,ENEC,CE, RoHS, IP66, IK08, TM21, LM79, LM80

2 拷贝 5

507B

50w size 2

Warning:

  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

e475cc4b6e 1

Led street light widely used in street, highway, garden, pavement, park, residential areas, industrial areas,

etc.

APPLICATION 1
APPLICATION 1

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.

Customization

One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.

Warranty

Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
