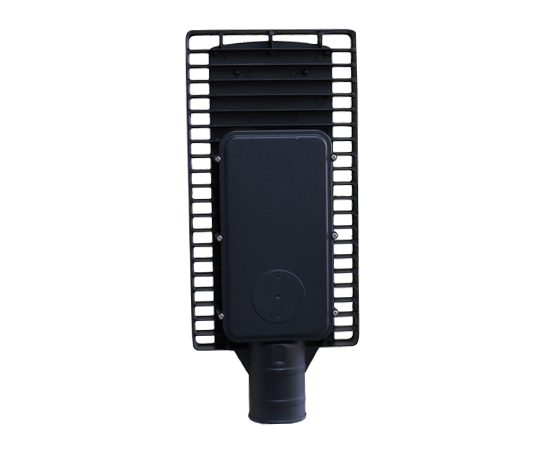

Economic led street light 100w

100

Description

Four dimensions: Lighter weight and smaller volume can help customer save freight cost; The outer cast aluminum housing provides efficient heat management as well as weight reduction and aerodynamic profiling.

Highlights

  • Lighter weight and smaller volume,economic type
  • Using Lumileds 3030 led chip,high lumen efficiency can reach 130-140lm/w.
  • Photocell, 7 Pin Nema base, 5 Pin Nema base, 3 Pin Nema base are available for option
  • IP65 waterproof,quality assurance with 5 years warranty.
icon01
icon03
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-SL305-W100
Rated Power 100W
Input Voltage AC100-277V, 50/60Hz,0.23A(at 230v)
PF: >0.95
IP Grade: IP65
THD: 8%(at 230v, 50Hz)
Surge protection: L/N-PE: 6KV, L-N: 4KV; 10/20KV version is for option.
LED Parameters
LED chip SMD3030 LED
Light Efficiency 130-140Lm/W
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle 70*150°
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color black
Operating Temperature -35℃ – 50℃
Net W./Gross W 3.0KGS / 3.7KGS(1 pieces)
Packing size 55*29*16CM(10PCS)
Warranty 5 years warranty
Certificates CE, RoHS

.jpg

80W 100W size 1
80W 100W size 1

Warning:

  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

Led street light widely used in street, highway, garden, pavement, park, residential areas, industrial areas,

etc.

application 4

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.

Customization

One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.

Warranty

Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
