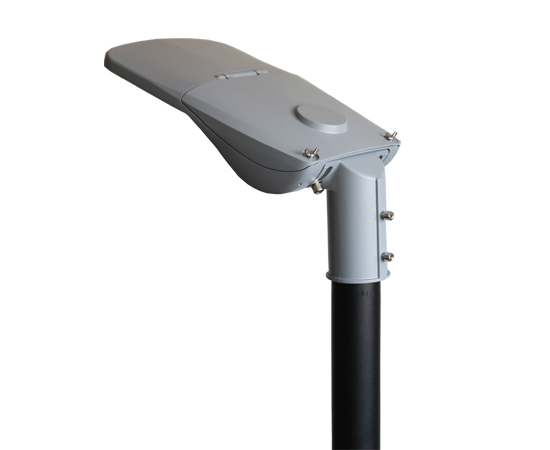

  • 200w 2 5

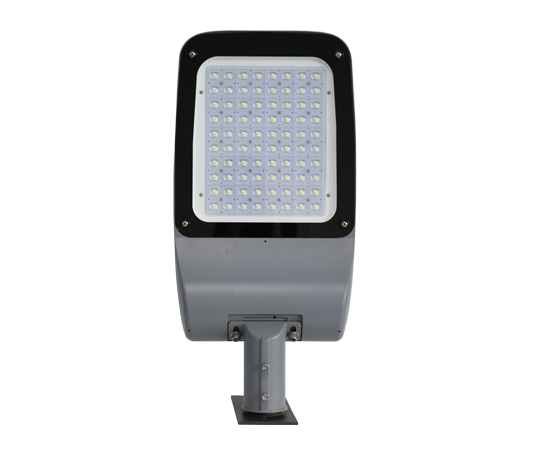

  • 180w led street light

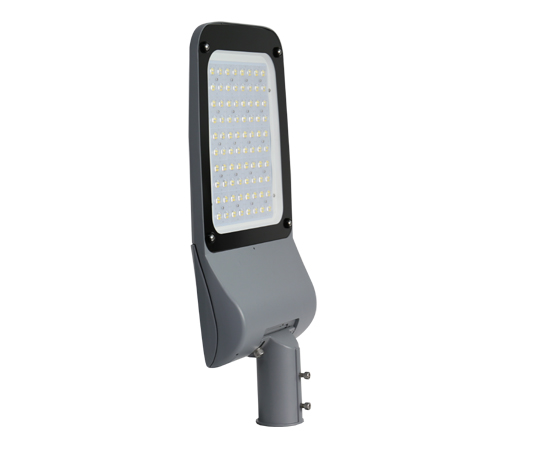

  • 200w street lamp

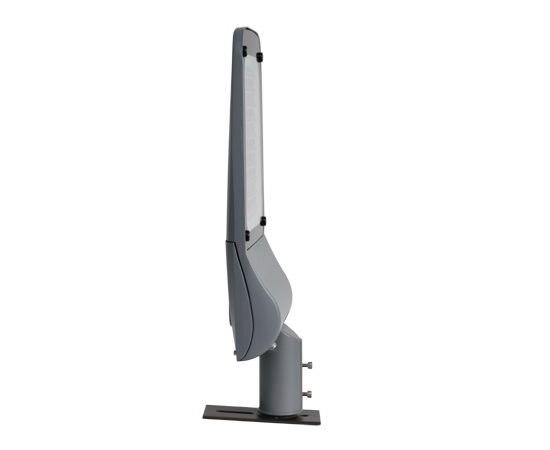

  • 200w 8
  • 200w street light
  • 200w 2 5
  • 180w led street light
  • 200w street lamp
  • 200w 8

SL307 Led street light 200w

100

Description

Power-off protection:Power will be off automatically once the fixture body is opened. 10KV Surge protection:Provide more relliable guarantee for LED driver-extend the light life Self-cleaness:Smooth body design for self-cleaning dust Multiple installation:Both vertical and horizontal installation are available

Highlights

  • IP66 and IK10 protect
  • High lumen 150LM/W
  • View angle:Type 2,Type 3,Type 4,60°,90°
  • Reports available for CE,ENEC,SAA,EMC,LVD,IEC,IP65/66 testing,LM79,TM21,IK10
icon01
icon03
icon05
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-SL307-W200
Rated Power 200W
Input Voltage AC100-277V, 50/60Hz
PF: >0.97
IP Grade: IP66
THD: 8%(at 230v, 50Hz)
Surge protection: L/N-PE: 6KV, L-N: 4KV; 10/20KV version is for option.
LED Parameters
LED chip SMD3030 LED
Light Efficiency 140-150lm/w
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle T2, T3, T4, 60°, 90°
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Grey
Operating Temperature -35℃ – 50℃
Net W./Gross W 8.9KGS /9.90KGS(one piece)
Packing size 64x39x20CM, One piece in one carton
Warranty 5 years warranty
Certificates CB,ENEC,CE, RoHS, IP66, IK08, TM21, LM79, LM80

50 200w

product details of 307 street light 2

product size

Warning:

  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

e475cc4b6e

Led street light widely used in street, highway, garden, pavement, park, residential areas, industrial areas,

etc.

application of street light
