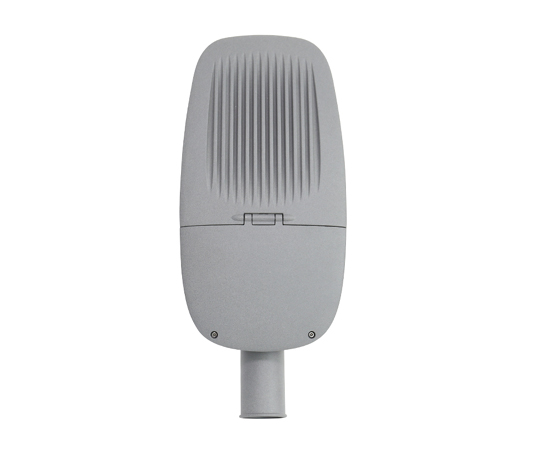

SL407 Led street light 100w



*top quality die-casting aluminum body,IK08 standard; *Waterproof IP66 design,suitable to damp & wet location; *Two installations:Vertical & Horizontal for options; *Surge protection:over 10KV,20KV version is also available; *Photocell/Timing is optional; *5 years warranty,over 70,000 hours lifespan.


  • IP66 and IK08 protect
  • High lumen 140-150lm/W
  • View angle:Type 2,Type 3,Type 4,60°,90°
  • Reports available for SAA,EMC,LVD,IEC,IP65/66 testing,LM79,TM21,IK08/10
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-SL407-W100
Rated Power 100W
Input Voltage AC100-277V, 50/60Hz
PF: >0.97
IP Grade: IP66
THD: 8%(at 230v, 50Hz)
Surge protection: L/N-PE: 6KV, L-N: 4KV; 10/20KV version is for option.
LED Parameters
LED chip SMD3030 LED
Light Efficiency 140-150lm/w
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle T2, T3, T4, 60°, 90°
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Grey
Operating Temperature -35℃ – 50℃
Net W./Gross W 5.5KGS / 6.4KGS(one piece)
Packing size 70x32x17CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS, SAA,IP66, IK08, TM21, LM79, LM80



size 100w 1


  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

e475cc4b6e 1

Led street light widely used in street, highway, garden, pavement, park, residential areas, industrial areas,


application of street

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.


One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.


Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
