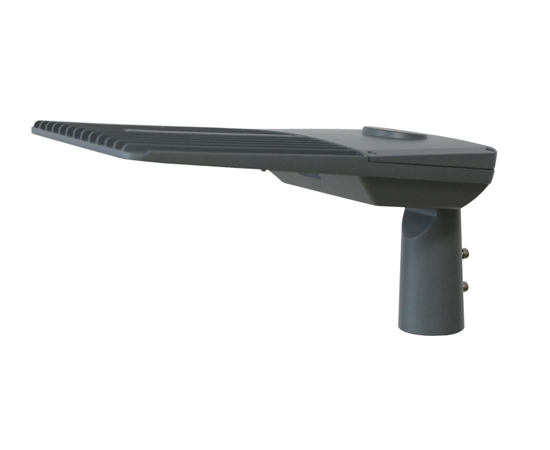

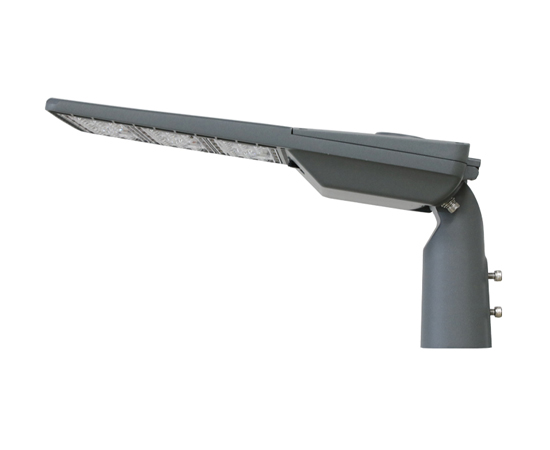

2023 NEW Street Light SL207 120w-150w



This is our new module street light SL207 published in 2023, which can do 30w-150w. Compared with the old SL307, the biggest feature of the new model is high lumens and high light efficiency, which can reach 165-180Lm/W with Lumileds 5050 leds. Multiple installation:Both vertical and horizontal installation are available Warranty: 5 years


  • IP67 and IK10 protect
  • High lumen 165-175Lm/W
  • Meanwell or Sosen driver optional
  • Test reports for CE, RoHS, IP67, IK10, TM21, LM79, LM80
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-SL207
Rated Power 120W,150W
Input Voltage AC100-277V, 50/60Hz
PF: >0.97
IP Grade: IP67
THD: <10%(at 230v, 50Hz)
Surge protection: L/N-PE: 6KV, L-N: 4KV; 10/20KV version is for option.
LED Parameters
LED chip SMD5050 LED
Light Efficiency 165-175lm/w
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle Type 2, Type 3, Type 4
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Grey
Operating Temperature -35℃ – 50℃
Net W./Gross W 4.5KGS /5.2KGS(one piece)
Packing size 54x29x18CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS, IP67, IK10, TM21, LM79, LM80

led street lights 120w 150w

size of street lamp


  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.


Led street light widely used in street, highway, garden, pavement, park, residential areas, industrial areas,
