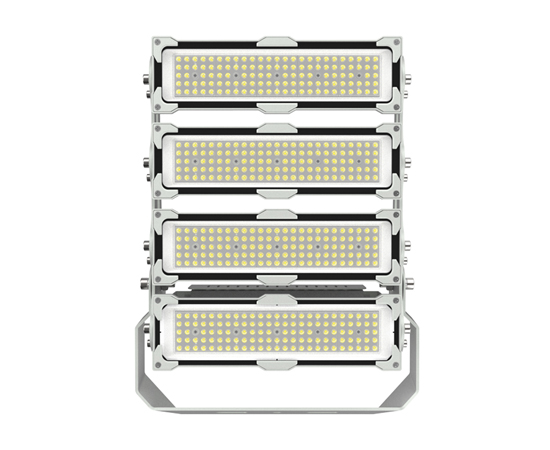

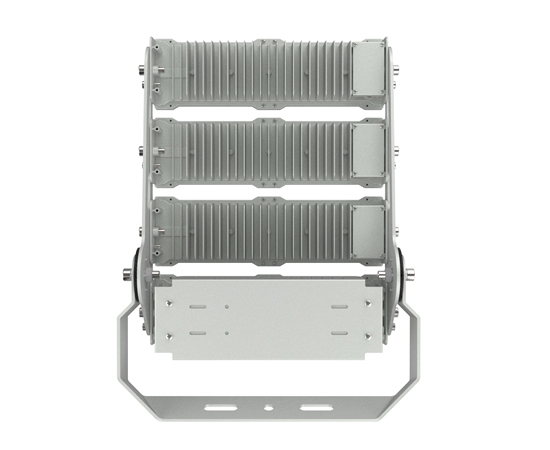

New Led Flood Light TN610-320W

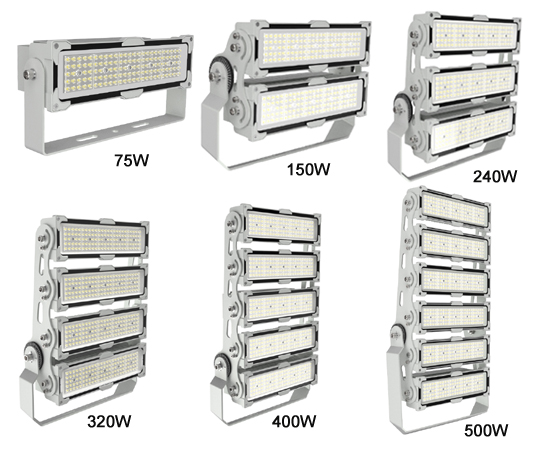

1)TN610 is a new type of module flood light fixture,which supports up to 6 modules form 75w to 500w,which can meet the high-power requirements and achieve the best cost. 2)TN610 not only uses ADC12 die-casting aluminum heat sink,but also uses the most advanced finite element heat dissipation technology to control the temperature of lamps. 3)The lens is made of UV-resistant PC material,and a variety of lighting angles can be selected.


  • 3030 SMD light source design 140-150Lm/W
  • ADC12 die-cast aluminum heat sink
  • Lighting angles:30°, 45°, 60°, 90°,120°,60x120°, 90x120°, and 80*150°
  • 5 years warranty
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-TN610-W320
Rated Power 320W
Input Voltage AC100-277V, 50/60Hz, 1.46A(at 230v); 347v/480v for option
PF: >0.95
IP Grade: IP67, IK08
THD: 10%(at 230v, 50Hz)
Surge protection: L/N-PE: 10KV, L-N: 6KV; 20KV version is for option
LED Parameters
LED chip 3030 SMD / 2835SMD
Light Efficiency 140-150Lm/W
Color Temperature 2700-3200K/4000-4500K/5000-5500K/5700-6500K
CRI >70Ra or 80Ra
Beam Angle 30°, 45°, 60°, 90°,120°,60×120°, 90×120°, and 80*150°(asymmetrical lens)
Mechanical Specification
Body Material Die casting aluminum ADC12
Lens Material PC lens+glass
Body color grey
Operating Temperature -35℃ – 50℃
Net W./Gross W 9.6KGS / 10.8KGS(one piece)
Packing size 39x61x15CM, one piece in one carton
Warranty 5 years warranty
Certificates CE,CB, RoHS, SAA, ETL, LM79, TM21




  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.


Led flood light widely used in shopping mall, billboard, exhibition hall, parking lot, tennis court, gymnasium, park, garden, building facade, any indoor or outdoor areas.

application floodlight

application 2
