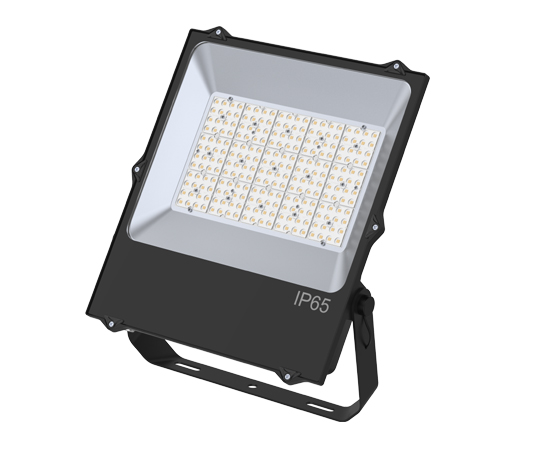

  • 200w flood light 1
  • 200w led flood light 1

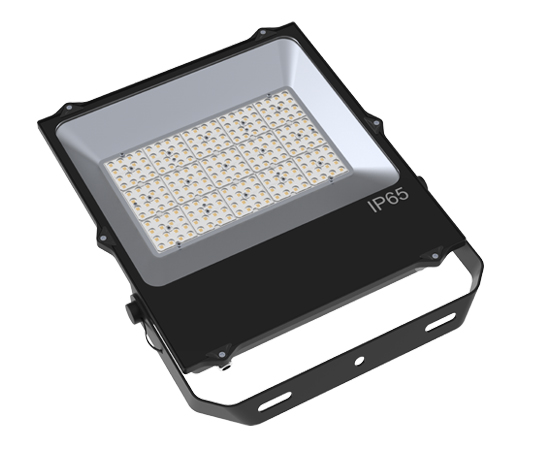

  • 200w floodlight 1

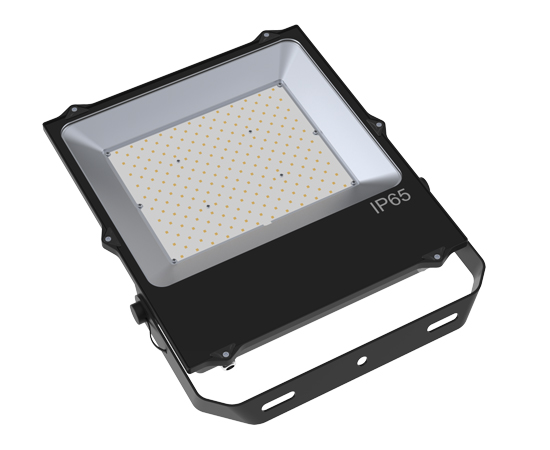

  • 200w led floodlight

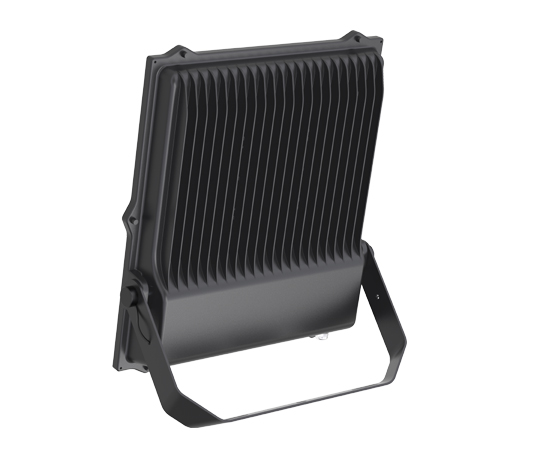

  • 200w 4

Slim led flood light 200w

100

Description

Streamline design appearance,sure thin,easy stallation, less weight to save your shipping cost,extremly high brightness, final finished product's luminous can reach 130-140lm/w.

Highlights

  • Ultra-thin sleek design, fashionable and classical
  • The third generation of flood light heat sink
  • LUMILEDS 3030 Chips,High CRI,over 130lm/w
  • IP66 Waterproof,5 Years warranty
icon05
icon01
icon03
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-FL600D-W200
Rated Power 200W
Input Voltage AC100-277V, 50/60Hz, 0.91A(at 230v); 347/480v for option
PF: >0.97
IP Grade: IP66
THD: 10%(at 230v, 50Hz)
Surge protection: L/N-PE: 6KV, L-N: 4KV; 10/20KV version is for option.
LED Parameters
LED chip SMD3030 LED
Light Efficiency 130-140lm/w
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle 30°, 60°, 90°, Type 2 (70*150°), Type 3 (80*150°), Type 4 (50*140°), Type 5 (140*140°)

120*120°

Mechanical Specification
Body Material Aluminum
Lens Material Glass lens
Body color Black
Operating Temperature -35℃ – 50℃
Net W./Gross W 7.0KGS / 8.3KGS(one piece)
Packing size 58*49*16CM, 1pc in one carton
Warranty 5 years warranty
Certificates CE, RoHS, SAA, LM80, LM79

02

1 拷贝 1

kit
Features:
1.Integrated reflector and entire aluminum lamp cooling structure;
2.Ultra-thin sleek design, fashionable and classical
4.High-brightness SMD LED (luminous flux maintenance factor of 95%), long life, high CRI, pure color;
5.Choose stable performance constant current source (fast start, no flicker, no noise);
6.IP66 Waterproof;
7.Does not contain environmentally harmful mercury pollution, green; Energy saving (power consumption is 80% compared with traditional Spotlights);
8.Long Lifespan (up to 80,000 hours);

200w size 2

installations

Led flood light 200w widely used in shopping mall, billboard, exhibition hall, parking lot, tennis court,

gymnasium, park, garden, building facade, any indoor or outdoor areas.
