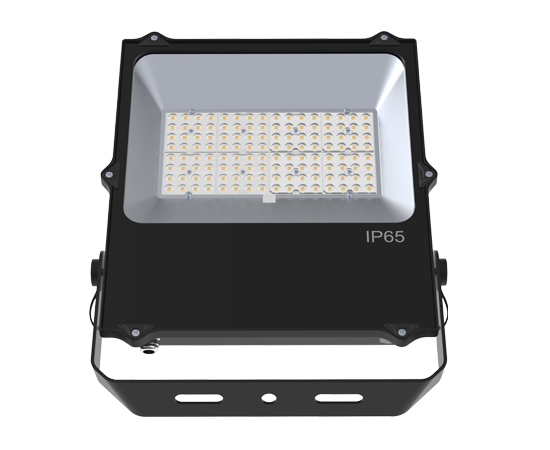

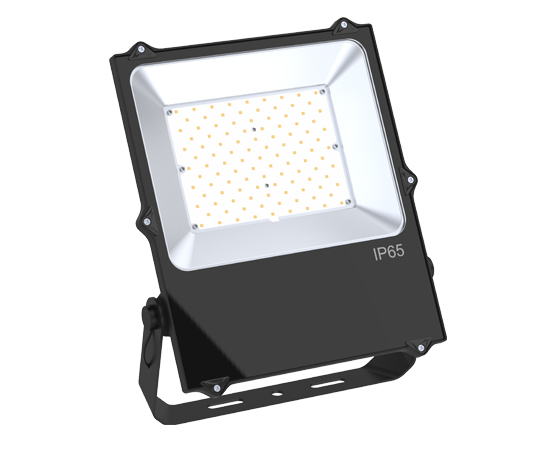

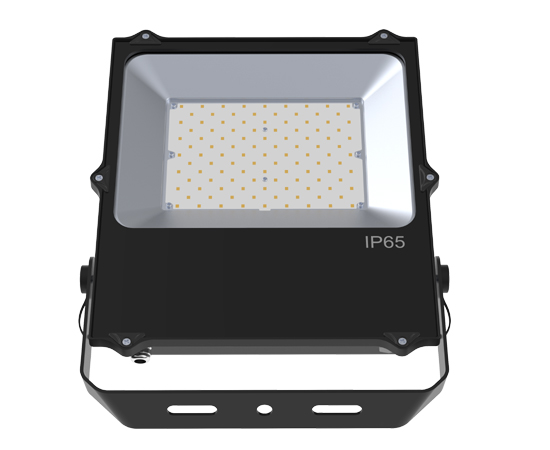

Slim led flood light 100w

100

Description

Streamline design appearance,sure thin,easy stallation, less weight to save your shipping cost,extremly high brightness, final finished product's luminous can reach 130-140lm/w.

Highlights

  • Ultra-thin sleek design, fashionable and classical

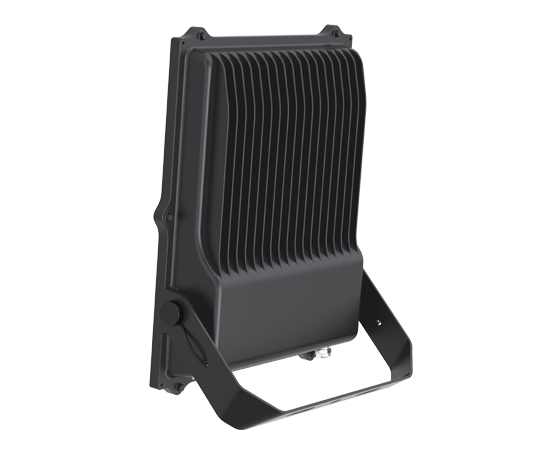

  • The third generation of flood light heat sink
  • LUMILEDS 3030 Chips,High CRI,over 130lm/w
  • IP66 Waterproof,5 Years warranty
icon05
icon01
icon03
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-FL600D-W100
Rated Power 100W
Input Voltage AC100-277V, 50/60Hz, 0.91A(at 230v); 347/480v for option
PF: >0.97
IP Grade: IP66
THD: 10%(at 230v, 50Hz)
Surge protection: L/N-PE: 6KV, L-N: 4KV; 10/20KV version is for option.
LED Parameters
LED chip SMD3030 LED
Light Efficiency 130-140lm/w
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle 30°, 60°, 90°, Type 2 (70*150°), Type 3 (80*150°), Type 4 (50*140°), Type 5 (140*140°)

120*120°

Mechanical Specification
Body Material Aluminum
Lens Material Glass lens
Body color Black
Operating Temperature -35℃ – 50℃
Net W./Gross W 4.4KGS / 5.6KGS(one piece)
Packing size 50*41*16CM, 1pc in one carton
Warranty 5 years warranty
Certificates CE, RoHS, SAA, LM80, LM79

02

1 拷贝 1

kit
Features:
1.Integrated reflector and entire aluminum lamp cooling structure;
2.Ultra-thin sleek design, fashionable and classical
4.High-brightness SMD LED (luminous flux maintenance factor of 95%), long life, high CRI, pure color;
5.Choose stable performance constant current source (fast start, no flicker, no noise);
6.IP66 Waterproof;
7.Does not contain environmentally harmful mercury pollution, green; Energy saving (power consumption is 80% compared with traditional Spotlights);
8.Long Lifespan (up to 80,000 hours);

100w size 1

installations

Led flood light 100w widely used in shopping mall, billboard, exhibition hall, parking lot, tennis court,

gymnasium, park, garden, building facade, any indoor or outdoor areas.

application 1

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.

Customization

One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.

Warranty

Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
