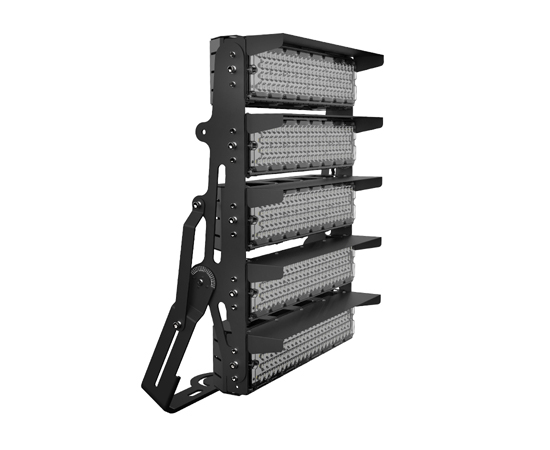

2023 LED Stadium Light SW-TS09 1250W

100

Description

a). Single module 270° adjustable; Anti glare, Lampshades for anti glare. b). Beam angle 20, 40, 60, 49X21 (asymetrical) meet professional light distribution. c). Fins heat sink connect with housing, the best heat dissaaption. d). Heavy-duty mounting bracket included for easy installation;

Highlights

  • Power range 250w to 1500w for option.
  • SMD5050 led light source,Light efficiecny reach 150-160lm/w
  • IP66 water and dust protect,5 years warranty
  • Meanwell driver or Sosen driver for option
icon01
icon03
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-TS09-W1250
Rated Power 1250W
Input Voltage AC100-277V, 50/60Hz; AC347V/480V is for option
PF: >0.97
IP Grade: IP66
THD: 10%(at 230v, 50Hz)
LED Parameters
LED chip SMD5050 LED
Light Efficiency 150-160LM/W
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle 20°, 40°, 60°, 49°x21°(asymmetrical)
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Grey,black
Operating Temperature -35℃ – 50℃
Net W./Gross W 26.5KGS / 28.5KGS(one piece)
Packing size 95x66x31CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS

100W 7 拷贝 3

TS09 1250W APP1

QQ图片20221229142552

Warning:

  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

23dce05ee5 1

Led stadium light widely used in shopping mall, billboard, exhibition hall, parking lot, tennis court,

gymnasium, park, garden, building facade, any indoor or outdoor areas.
