Round led stadium light 1000w



The most powerful LED light ,replacing more than 2000W MH/HPS lamps.Meanwell driver provide superior performance,separate driver box design,better for heat dissipation and maintenance.Various beam angle 10°/25°/45°/60° are available for optiomal,more uniform light distribution.Lamp cap available,avoid the light glare.


  • Using LUMILEDS 5050,high lumen efficient reach to 150lm/w.

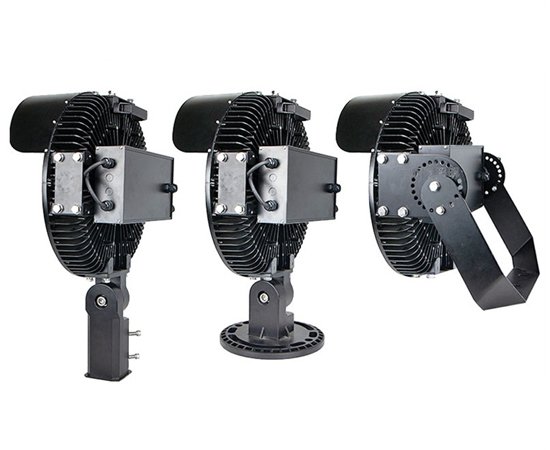

  • Three mounting type for your option
  • IP67 rating is applicable to outdoor environment.
  • More than 50,000 hours lifespan with 5 years warranty.
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-TS06-W1000
Rated Power 1000W
Input Voltage AC100-277V, 50/60Hz, 2.28A(at 230v);347V/480V AC for option
PF: >0.97
IP Grade: IP66
THD: 10%(at 230v, 50Hz)
Surge protection: L/N-PE: 10KV, L-N: 6KV; 20KV version is for option.
LED Parameters
LED chip SMD5050 LED
Light Efficiency 150-160LM/W
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle 10°, 25°, 60°
Mechanical Specification
Body Material Die-casting aluminum
Lens Material PC lens
Body color Black
Operating Temperature -35℃ – 50℃
Net W./Gross W 33.5KGS / 37.0KGS(one piece)
Packing size 88x70x28CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS

stadium light

1000W SIZE 1


  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

Led stadium light widely use in airport, seaport, sports lighting and other high mast lighting. It have professional lighting distribution, easy to install, more energy saving.

application 3

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.


One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.


Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
