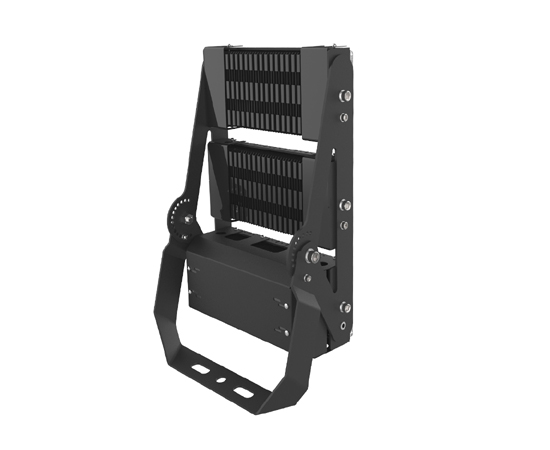

  • 3 1
  • TS09B 1

LED Staidum Light SW-TS09B-W320

100

Description

New Private mold,Fashionable outlooking,Reliable IP65 waterproof structure design.Perfect corrosion-proof :Pure aluminum for main housing,Galvanized plate+ painting for bracket and driver cover,304 stainless steel screws.Modular design, 200w-500w wattage can be customized

Highlights

  • Using SMD5050 led chip,high Lumen efficiency 150-160 lm/w
  • Wild view angle for option:8°, 20°, 40°, 60°, 120°, 140x100°, 50°(asymmetrical)
  • Mounting angle adjustable.
  • 5 years warranty,Meanwell driver/Sosen driver+Lumileds chips
icon01
icon03
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-TS09B-W320
Rated Power 320W
Input Voltage AC100-277V, 50/60Hz, 2.68A(at 230v);347V/480V AC for option
PF: >0.97
IP Grade: IP66
THD: 10%(at 230v, 50Hz)
Surge protection: L/N-PE: 10KV, L-N: 6KV; 20KV version is for option.
LED Parameters
LED chip SMD5050 LED
Light Efficiency 150-160LM/W
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle 8°, 20°, 40°, 60°, 120°, 140×100°, 50°(asymmetrical)
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Black
Operating Temperature -35℃ – 50℃
Net W./Gross W KGS / KGS(one piece)
Packing size CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS

100W 7 拷贝 1

VCG2137207a50d 拷贝 2

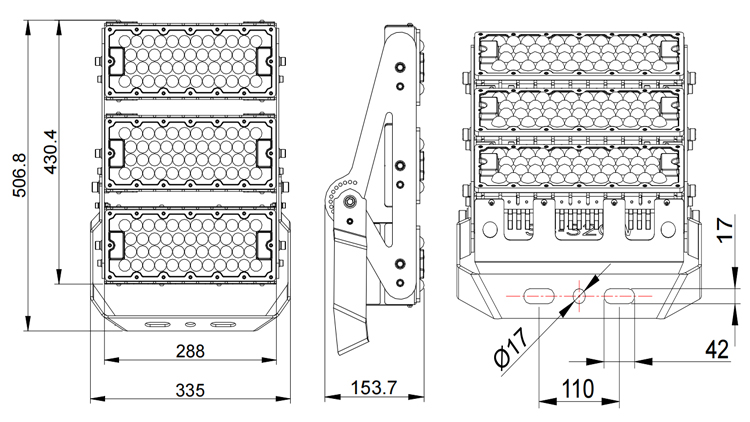

SIZE TS09B 320W

Warning:

  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

Led flood stadium light widely used in shopping mall, billboard, exhibition hall, parking lot, tennis court,gymnasium, park, garden, building facade, any indoor or outdoor areas.

application 拷贝 2

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.

Customization

One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.

Warranty

Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
