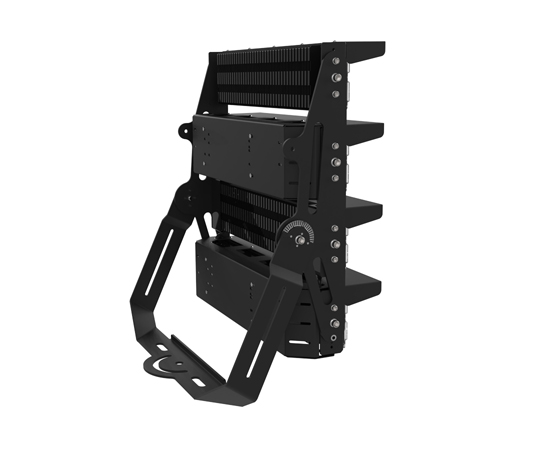

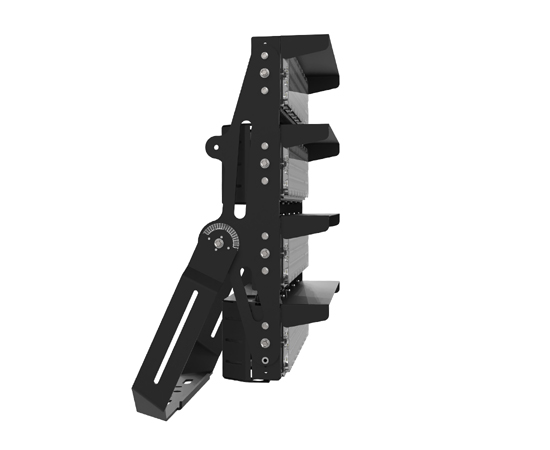

2023 LED Stadium Light SW-TS09 1000W

100

Description

a). Single module 270° adjustable; Anti glare, Lampshades for anti glare. b). Beam angle 20, 40, 60, 49X21 (asymetrical) meet professional light distribution. c). Fins heat sink connect with housing, the best heat dissaaption. d). Heavy-duty mounting bracket included for easy installation;

Highlights

  • Power range 250w to 1500w for option.
  • SMD5050 led light source,Light efficiecny reach 150-160lm/w
  • IP66 water and dust protect,5 years warranty
  • Meanwell driver or Sosen driver for option
icon01
icon03
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-TS09-W1000
Rated Power 1000W
Input Voltage AC100-277V, 50/60Hz; AC347V/480V is for option
PF: >0.97
IP Grade: IP66
THD: 10%(at 230v, 50Hz)
LED Parameters
LED chip SMD5050 LED
Light Efficiency 150-160LM/W
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle 20°, 40°, 60°, 49°x21°(asymmetrical)
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Grey,black
Operating Temperature -35℃ – 50℃
Net W./Gross W 22.3KGS / 24.2KGS(one piece)
Packing size 83x66x31CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS

100W 7 拷贝 2

TS09 1000W APP 1

QQ图片20221229141456

Warning:

  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

23dce05ee5 1

Led stadium light widely used in shopping mall, billboard, exhibition hall, parking lot, tennis court,

gymnasium, park, garden, building facade, any indoor or outdoor areas.

02 1

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.

Customization

One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.

Warranty

Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
