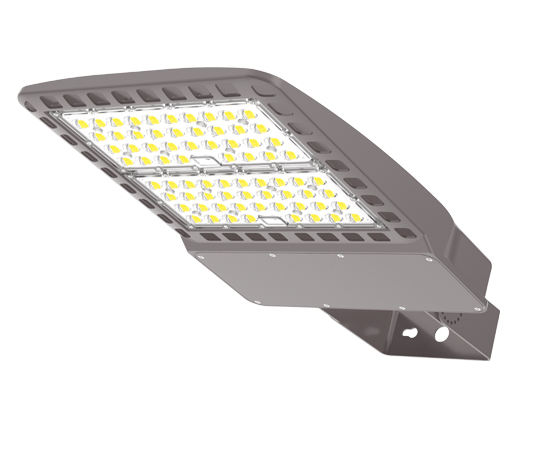

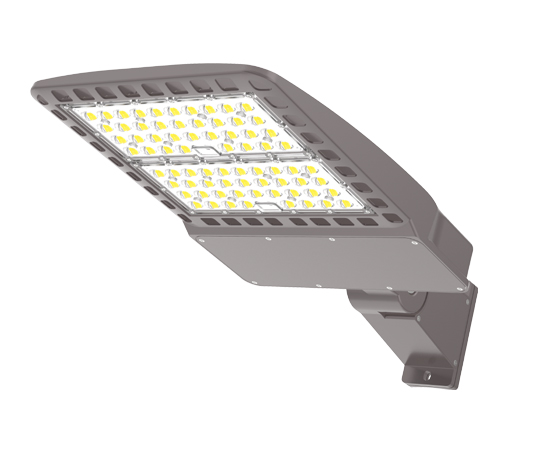

High pressure diecast aluminium alloy housing from 75W to 300W;Optional beam angle: Type III, Type IV, Type V;Dimming and smart lighting system available.Modular design allows for separation of components for best heat dissipation.Kinds of mounting methods is available for different installation.
|Input Voltage||AC100-277V, 50/60Hz；0.37A(at 220v); 347v/480v for option|
|THD:||8%（at 230v, 50Hz)|
|Surge protection:||L/N-PE: 10KV, L-N: 6KV; 20KV version is for option.|
|LED chip||SMD3030 LED|
|CRI||>70Ra or 80Ra|
|Beam Angle||Type 3, Type 4, Type 5|
|Lens Material||PC lens|
|Operating Temperature||-35℃ – 50℃|
|Net W./Gross W||7.2KGS / 8.2KGS(one piece)|
|Packing size||73x38x16CM, One piece in one carton|
|Warranty||5 years warranty|
|Certificates||CE, RoHS, IP66, IK08, LM79, LM80|
* Use high bright Lumileds 3030 led, the luminous efficiency of whole lamp up to 150lm/W.
* IP66 rated for wet location.

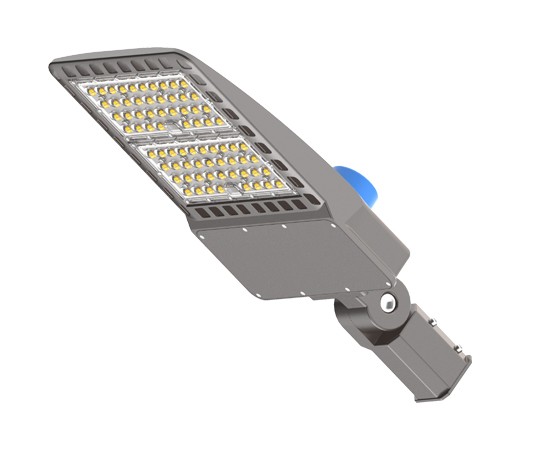

* Photocell sensor and dimmable function for option.

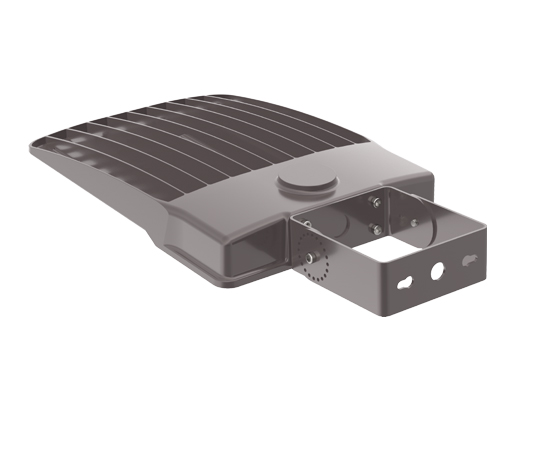

* 4 kinds of mounting methods are available for different installation.
* Offering 5 years warranty, over 50,000 hours lifetime.
* Modular design allows for separation of components for best heat dissipation.
* Die-cast and powder coated aluminium housing for better anti-corrosion.
* CE/RoHS/LM79/LM80/IES for quality assurance and safe operation.
Led parking lot light widely used in street, highway,parking lot, square, garden, pavement, sports area, park, residential areas, industrial areas, etc.
