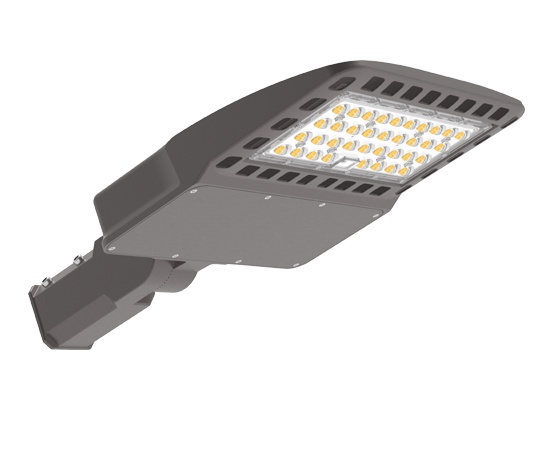

• 100W led parking lot light

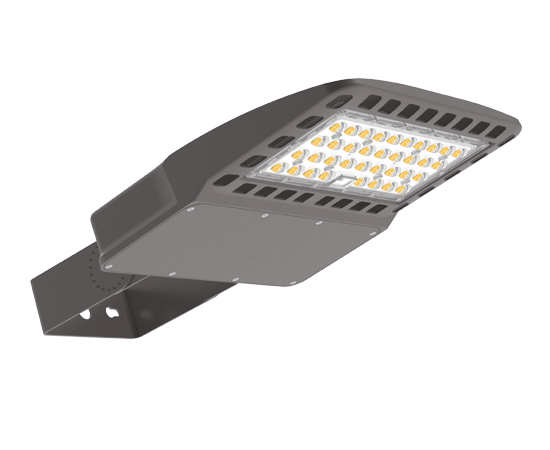

  • 100w parking lot light
  • 150w led parking lot light

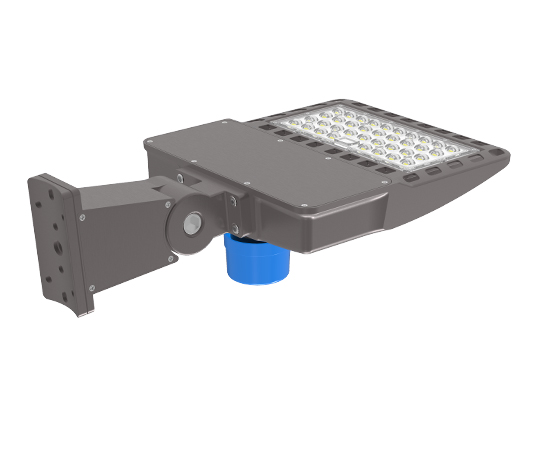

  • 100w led shoebox light

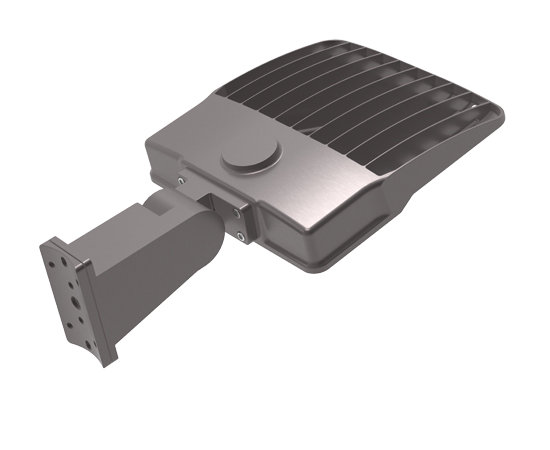

  • 100w 5
  • 100W led parking lot light
  • 100w parking lot light
  • 150w led parking lot light
  • 100w led shoebox light
  • 100w 5

Led parking lot light 150w

100

Description

High pressure diecast aluminium alloy housing from 75W to 300W;Optional beam angle: Type III, Type IV, Type V;Dimming and smart lighting system available.Modular design allows for separation of components for best heat dissipation.Kinds of mounting methods is available for different installation.

Highlights

  • Super bright 3030 SMD,super bright up to 150lm/w; lower lumen decay
  • IP65 design, top quality aluminum radiator, excellent dissiipation, longer life.
  • High quality die casting aluminum, stronger body.
  • Photocell and motion sensor are optional.
icon01
icon03
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-SL409C-W150
Rated Power 150W
Input Voltage AC100-277V, 50/60Hz;0.37A(at 220v); 347v/480v for option
PF: >0.97
IP Grade: IP66
THD: 8%(at 230v, 50Hz)
Surge protection: L/N-PE: 10KV, L-N: 6KV; 20KV version is for option.
LED Parameters
LED chip SMD3030 LED
Light Efficiency 150-160lm/w
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle  Type 3, Type 4, Type 5
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Grey
Operating Temperature -35℃ – 50℃
Net W./Gross W 4.5KGS / 5.4KGS(one piece)
Packing size 61x38x16CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS, IP66, IK08, LM79, LM80

100W 7

H7cec7aac22d7421eaa5f403dd9cdaa71L

Products Advantage:

* Use high bright Lumileds 3030 led, the luminous efficiency of whole lamp up to 150lm/W.
* IP66 rated for wet location.
* Photocell sensor and dimmable function for option.
* 4 kinds of mounting methods are available for different installation.
* Offering 5 years warranty, over 50,000 hours lifetime.
* Modular design allows for separation of components for best heat dissipation.
* Die-cast and powder coated aluminium housing for better anti-corrosion.
* CE/RoHS/LM79/LM80/IES for quality assurance and safe operation.

100W SIZE 1

H69fd3ab1293d4f20ae1032da4a7af320X

Led parking lot light widely used in street, highway,parking lot, square, garden, pavement, sports area, park, residential areas, industrial areas, etc.
