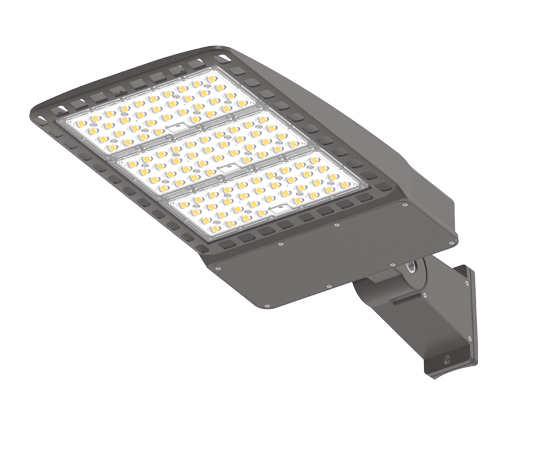

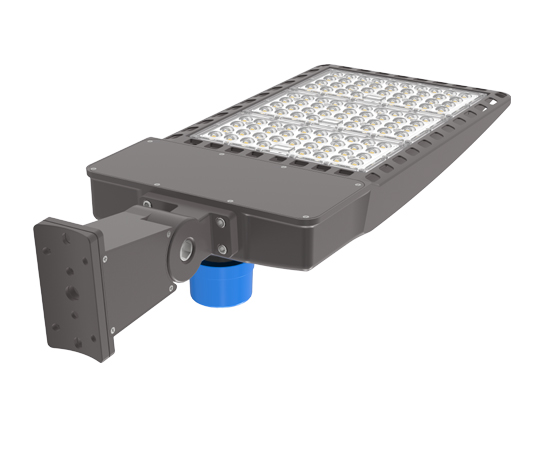

Led parking lot light 300w



High pressure diecast aluminium alloy housing from 75W to 300W;Optional beam angle: Type III, Type IV, Type V;Dimming and smart lighting system available.Modular design allows for separation of components for best heat dissipation.Kinds of mounting methods is available for different installation.


  • Super bright 3030 SMD,super bright up to 150lm/w; lower lumen decay
  • IP65 design, top quality aluminum radiator, excellent dissiipation, longer life.
  • High quality die casting aluminum, stronger body.
  • Photocell and motion sensor are optional.
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-SL409C-W300
Rated Power 300W
Input Voltage AC100-277V, 50/60Hz;0.37A(at 220v); 347v/480v for option
PF: >0.97
IP Grade: IP66
THD: 8%(at 230v, 50Hz)
Surge protection: L/N-PE: 10KV, L-N: 6KV; 20KV version is for option.
LED Parameters
LED chip SMD3030 LED
Light Efficiency 140-150lm/w
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle  Type 3, Type 4, Type 5
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Grey
Operating Temperature -35℃ – 50℃
Net W./Gross W 9.8KGS / 10.9KGS(one piece)
Packing size 85x39x17CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS, IP66, IK08, LM79, LM80

100W 4 拷贝


Products Advantage:

* Use high bright Lumileds 3030 led, the luminous efficiency of whole lamp up to 150lm/W.
* IP66 rated for wet location.
* Photocell sensor and dimmable function for option.
* 4 kinds of mounting methods are available for different installation.
* Offering 5 years warranty, over 50,000 hours lifetime.
* Modular design allows for separation of components for best heat dissipation.
* Die-cast and powder coated aluminium housing for better anti-corrosion.
* CE/RoHS/LM79/LM80/IES for quality assurance and safe operation.

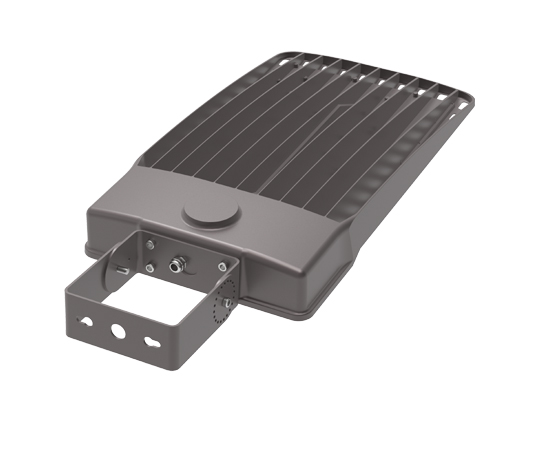

300W SIZE 1


Led parking lot light widely used in street, highway,parking lot, square, garden, pavement, sports area, park, residential areas, industrial areas, etc.

2 拷贝 2

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.


One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.


Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
