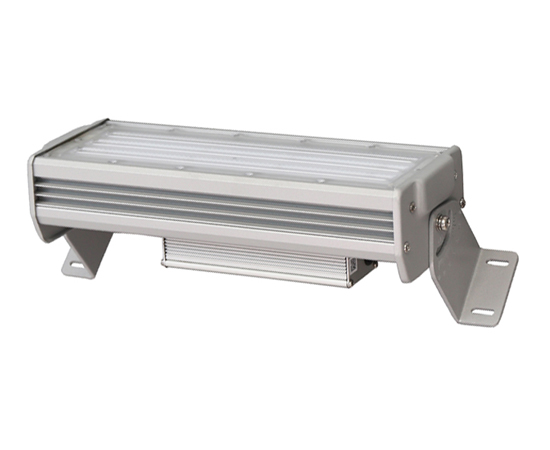

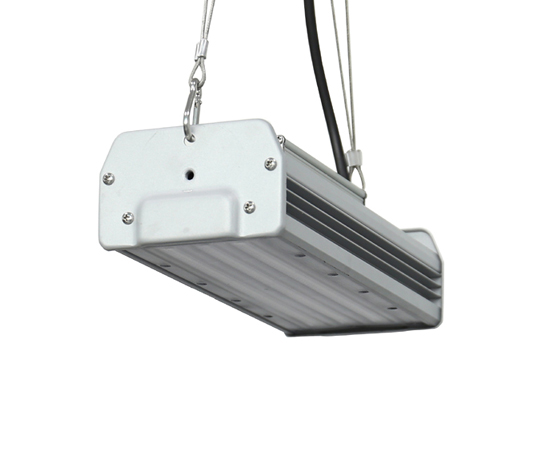

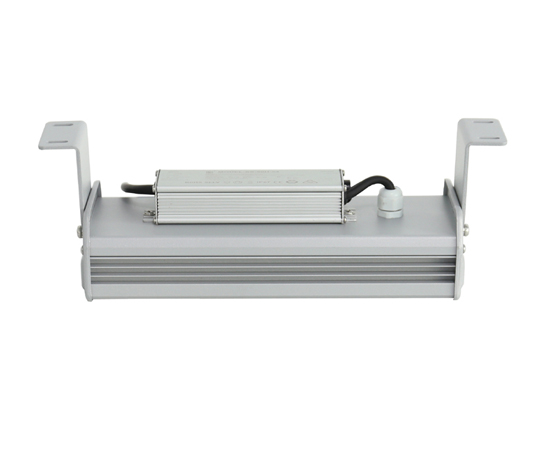

LED linear high bay light 50w



Patent housing design with perfect heat dissipation.Different beam angle 120°x120°; 60°x100°;30°x100°.Two mounting type:suspending mounting and bracket mounting for option.Simple and pretty appearance, exclusive high-end products. Surely will bring you incomparable refreshing experience.


  • High light efficiency 140-150lm/w, supper bright
  • Long lifespan, 5-7 years warranty with Sosen & Mean Well driver
  • CE, RoHS, SAA,DLC, ETL certificates approved.
  • DALI, ZigBee, motion sensor, and 1-10V dimmable are available

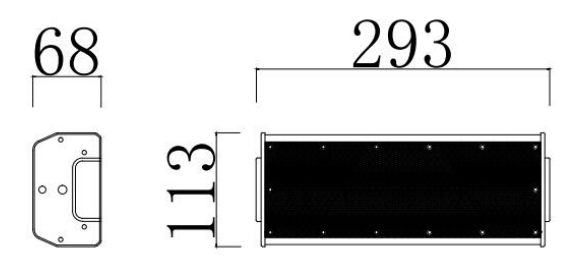

Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-L400B-W50
Rated Power 50W
Input Voltage AC100-277V, 50/60Hz, 1.14A(at 220v); 347/480V AC for option
PF: >0.97
IP Grade: IP65
THD: 10%(at 230v, 50Hz)
Surge protection: L/N-PE: 6KV, L-N: 4KV; 20KV version is for option.
LED Parameters
LED chip SMD3030 LED
Light Efficiency 140-150lm/w
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle 120°x120°; 60°x100°;30°x100°
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color grey
Operating Temperature -35℃ – 50℃
Net W./Gross W 1.7KGS(1PCS)/ 4.2KGS(2PCS)
Packing size 36*30*16cm(2PCS)
Warranty 5-7 years warranty
Certificates CE, RoHS, SAA, ETL

3 拷贝

L400 2


4 拷贝



  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.


Linear led high bay light widely used inwarehouse, workshop, supermarkets, exhibition room, hall, toll station, gas station, residential areas, industrial areas, etc.
