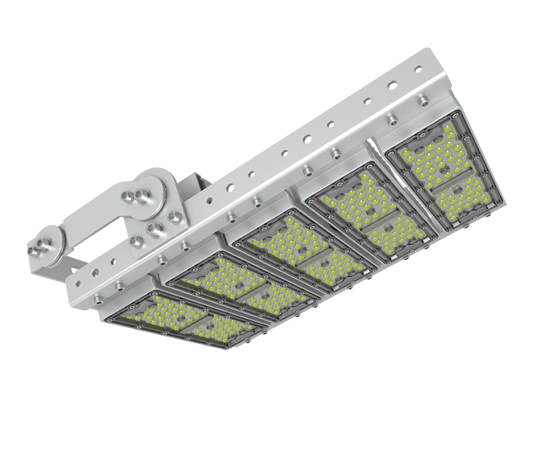

LED Flood Light 240W

100

Description

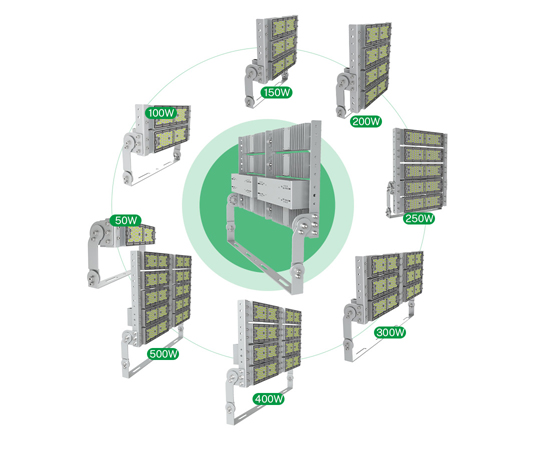

TN510 series led flood light is our new mould product,wide power range from 50w to 500w. Classic outlook with strong structure patent design,waterproof IP66 and IK10 use to outdoor terrible environment.

Highlights

  • Super lumen 150-160Lm/W
  • Modular design,7 years warranty
  • Beam angle:30°,60°,90°,120°,75*150°
  • Own design and tooling,stable quality and supply
icon01
icon03
icon05
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-TN510-W240
Rated Power 240W
Input Voltage AC100-277V, 50/60Hz, 1.14A(at 220v);AC347V/480V for option
PF: >0.97
IP Grade: P66, IK10
THD: 10%(at 230v, 50Hz)
Surge protection: L/N-PE: 10KV, L-N: 6KV; 20KV version is for option
LED Parameters
LED chip SMD3030 LED
Light Efficiency 150-160Lm/W
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle 30°, 60°, 90°,120° and 75*150(asymmetrical lens)
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color grey
Operating Temperature -35℃ – 50℃
Net W./Gross W 6.9KGS / 7.8KGS(one piece)
Packing size 49x40x16CM, one piece in one carton
Warranty 7 years warranty
Certificates CE, RoHS, SAA,CB

04 1

06 1

240w size 1

Warning:

  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

e4d6a852c8

Led flood light widely used in shopping mall, billboard, exhibition hall, parking lot, tennis court, gymnasium, park, garden, building facade, any indoor or outdoor areas.

application floodlight

application 2
