This is our latest style in 2022, which can do 80W-240W. The biggest feature of this model is high lumens and high luminous efficiency, which can be 180-190Lm/W and 150-160Lm/W respectively. Another feature is that the price has dropped a lot compared to the old model, and now the new model is enthusiastically ordered by new and old customers.


  • High light efficiency 180-190Lm/W or 150-160Lm/W
  • Meanwell or Sosen driver for optional
  • IP65/IP66 waterproof
  • 5-year warranty
Product Dimension
User Manual
Application Cases
Product specification

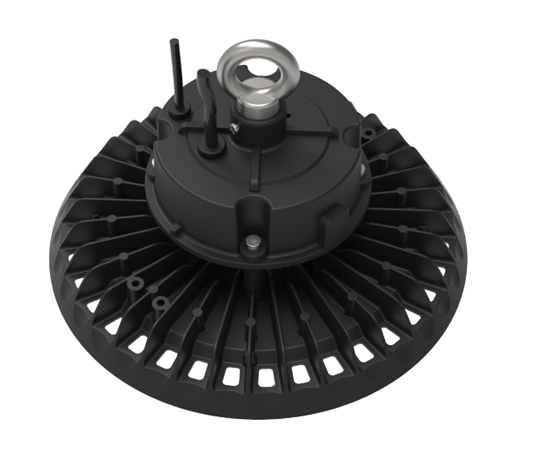

Model No. SW-H003J-W100
Rated Power 100W
Input Voltage AC100-277V, 50/60Hz, 0.91A(at 230v)
PF: >0.97
IP Grade: IP65
THD: 10%(at 230v, 50Hz)
LED Parameters
LED chip SMD2835 LED
Light Efficiency 150-160lm/w or 180-190Lm/W
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle  60°, 90°, 120°
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Black
Operating Temperature -35℃ – 50℃
Net W./Gross W 1.8KGS / 2.3KGS(one piece)
Packing size 34*34*16CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS, SAA,LM79, TM21, LM80, ERP

Features of UFO LED high bay lights

1) nice design, higher efficiency, longer life;

2) With well-known brand led chip, and the LEDs are on large size PCB, the junction temperature on LED can be much lower, this guaranteed lower lumen decay and longer life of LED;

3) Top quality aluminum radiator , excellent heating dissipation;

4) Do not need extra reflector, the international shipping cost can be much cheaper;

5) Three different beam angle: 60°,90°120

100W 2 s

100W size


LED high bay light widely used in warehouse, workshop, supermarkets, exhibition room, hall, toll station, gas station, residential areas, industrial areas, etc.

application high bay 1

application led high bay 1

ufo high bay application
