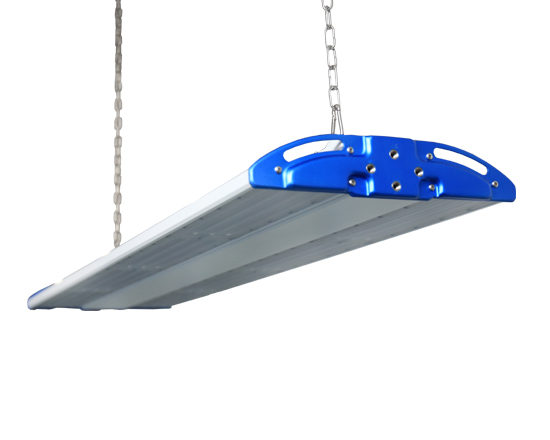

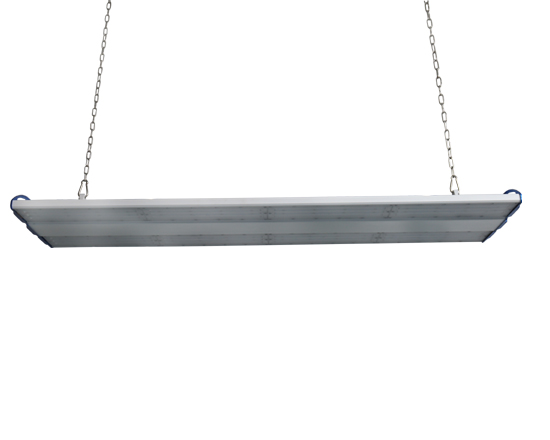

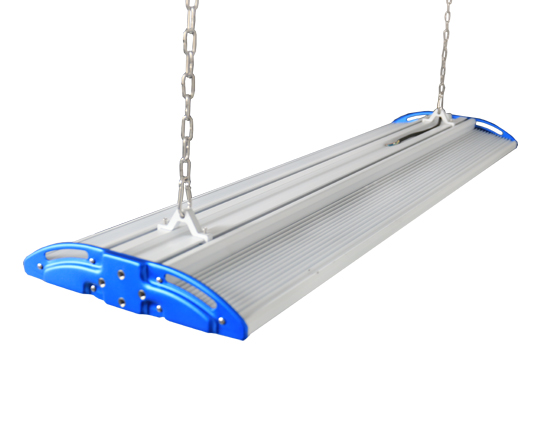

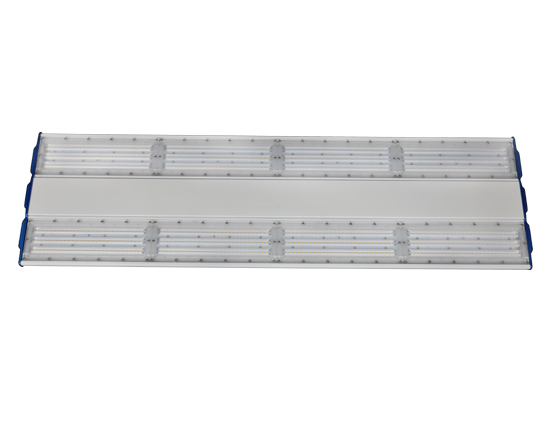

LED linear high bay light 500w

100

Description

Patent housing design with perfect heat dissipation.Different beam angle 120°*120°, 60°*120°, 90°*120°.Two mounting type:suspending mounting and bracket mounting for option.Simple and pretty appearance, exclusive high-end products. Surely will bring you incomparable refreshing experience.

Highlights

  • High efficiency 160-170lm/w, supper bright
  • Long lifespan, 5-7 years warranty with Sosen & Mean Well driver
  • DALI, ZigBee, motion sensor, and 1-10V dimmable are available
  • CE, RoHS,SAA,DLC, ETL certificates approved.
icon02
icon06
icon05
icon01
icon03
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-L500-W500
Rated Power 500W
Input Voltage AC100-277V, 50/60Hz, 0.45A(at 220v); 347/480V AC for option
PF: >0.97
IP Grade: IP65
THD: 10%(at 230v, 50Hz)
Surge protection: L/N-PE: 6KV, L-N: 4KV; 20KV version is for option.
LED Parameters
LED chip SMD3030 LED
Light Efficiency 140-150lm/w
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle 120°x120°; 60°x100°;30°x100°
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color White/grey
Operating Temperature -35℃ – 50℃
Net W./Gross W 11.5KGS / 13.1KGS(one piece)
Packing size 120x39x17CM, One piece in one carton
Warranty 5-7 years warranty
Certificates CE, RoHS, SAA, ETL, DLC

2 拷贝

sensor L500

3 拷贝SMALL

400W SIZE

Warning:

  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

QQ图片20211214114103

Application

(1). Warehouse,factory and workshops;
(2). Highway toll station and gas station;
(3). Exhibition hall and supermarket;
(4). Gymnasium and supermarket;
(5). Residential area, etc.
