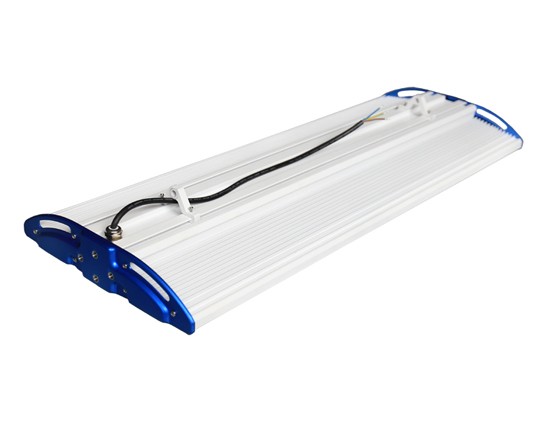

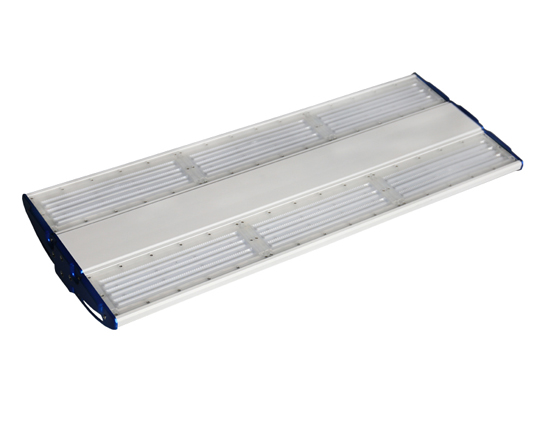

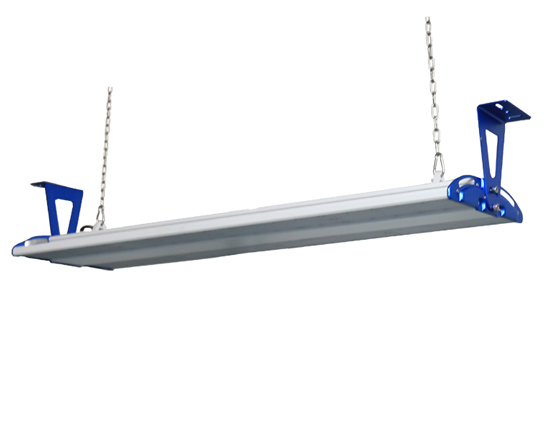

LED linear high bay light 300w

100

Description

Patent housing design with perfect heat dissipation.Different beam angle 120°*120°, 60°*120°, 90°*120°.Two mounting type:suspending mounting and bracket mounting for option.Simple and pretty appearance, exclusive high-end products. Surely will bring you incomparable refreshing experience.

Highlights

  • High efficiency 160-170lm/w, supper bright
  • Long lifespan, 5-7 years warranty with Sosen & Mean Well driver
  • DALI, ZigBee, motion sensor, and 1-10V dimmable are available
  • CE, RoHS,SAA,DLC, ETL certificates approved.
icon02
icon06
icon05
icon01
icon03
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-L500-W300
Rated Power 300W
Input Voltage AC100-277V, 50/60Hz, 0.45A(at 220v); 347/480V AC for option
PF: >0.97
IP Grade: IP65
THD: 10%(at 230v, 50Hz)
Surge protection: L/N-PE: 6KV, L-N: 4KV; 20KV version is for option.
LED Parameters
LED chip SMD3030 LED
Light Efficiency 140-150lm/w
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle 120°x120°; 60°x100°;30°x100°
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color White/grey
Operating Temperature -35℃ – 50℃
Net W./Gross W 9.0KGS / 10.4KGS(one piece)
Packing size 90x39x17CM, One piece in one carton
Warranty 5-7 years warranty
Certificates CE, RoHS, SAA, ETL, DLC

linear high bay

sensor L500

3 拷贝SMALL

300W SIZE

Warning:

  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

QQ图片20211214114103

Application

(1). Warehouse,factory and workshops;
(2). Highway toll station and gas station;
(3). Exhibition hall and supermarket;
(4). Gymnasium and supermarket;
(5). Residential area, etc.

application linear high bay

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.

Customization

One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.

Warranty

Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
