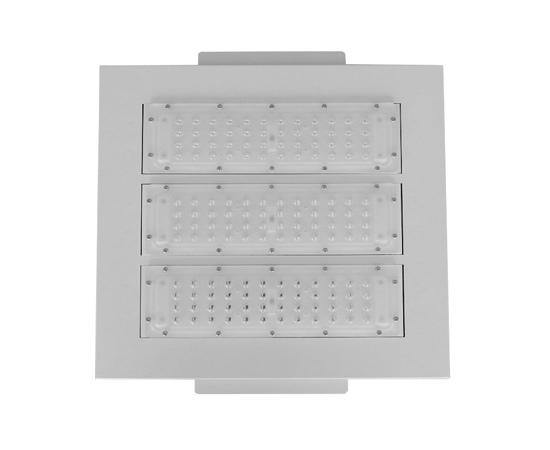

Led canopy light 150w

100

Description

Using high quality 3030 chips, LM-80 report and IES data available.The whole lamp with the powder coating is brighter, without fading and corrosion; Built-in light module, easy maintenance and low maintenance costs. Dust-proof and waterproof, IP65.

Highlights

100-277VAC,50 / 60HZ; PF>=0.97; IP65; 5 years warranty
130-140lm/w;beam angle 60°, 90°; Aluminum Housing; 3030 SMD LED
150w led equivalent 400-600W HPS/HID
Installations:Recessed, Pendant or Surface Mounted (Optional)

Ask for A Quote Add to Inquiry Cart

Specification

Product Dimension

User Manual

Application Cases

Product specification
Model No.	SW-CP001B-W150
Rated Power	150W
Input Voltage	AC100-277V, 50/60Hz; 0.37A(at 220v)
PF:	>0.97
IP Grade:	IP65
THD:	10%（at 230v, 50Hz)
LED Parameters
LED chip	SMD3030 LED
Light Efficiency	130-140Lm/W
Color Temperature	2700-7000k
CRI	>70Ra or 80Ra
Beam Angle	60°, 90°
Mechanical Specification
Body Material	Aluminum
Lens Material	PC lens
Body color	white
Operating Temperature	-35℃ – 50℃
Net W./Gross W	5.5KGS / 6.50KGS(one piece)
Packing size	42x41x17CM, One piece in one carton
Warranty	5 years warranty
Certificates	CE, RoHS

Product features:

1. Great Lighting source
The chip of 150w led canopy light is of high quality and high CRI, It can resist higher anti-static and distribute more brightness.

2. High quality driver
The 150w led canopy light adopts high performance driver, with FCC, CE ROHS certification. Three or five years warranty.

3. Low light attenuation
The 150W LED canopy light is adopting new technology, less than 3% attenuation in 1000hrs while the traditional light at least 30%, making the 150w led canopy light more attractive.

4. Excellent Housing Material
Using high quality aluminium as Lamp housing, the surface of the led canopy light is treated by oxidation, beautiful and high strength. High anti-resisstance and good heat dissipation.

5. Eco-friendly
The 150w LED canopy light produces no UV and IR radiation. Hence it is harmless to human health and eyes. It is completely Green product.

6. High lumen efficiency
High brightness LED and high luminous efficiency (>130lm/W); lamp output ratio >90%.

22 1

Widely used in Gas Station, Shopping Mall, Garage, Station,Workshops, Factories, Warehouse, Storehouses,Toll stations, Supermarkets, Exhibition halls, Gymnasiums, Square,and some other places where need lighting.

application

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.

Customization

One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.

Warranty

Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
