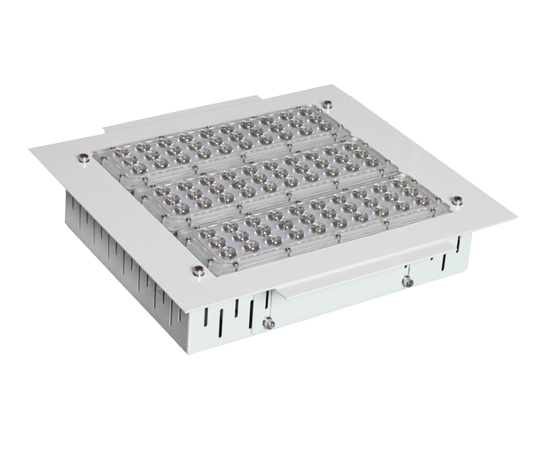

LED canopy light 150w

100

Description

Using high quality 3030 chips, LM-80 report and IES data available.The whole lamp with the powder coating is brighter, without fading and corrosion; Built-in light module, easy maintenance and low maintenance costs. Dust-proof and waterproof, IP65.

Highlights

  • 100-277VAC,50 / 60HZ; PF>=0.97; IP65; 5 years warranty
  • 130-140lm/w;beam angle 60°, 90°; Aluminum Housing; 3030 SMD LED
  • 150w led equivalent 400-600W HPS/HID
  • Installations:Recessed, Pendant or Surface Mounted (Optional)
icon01
icon03
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-CP001-W150
Rated Power 150W
Input Voltage AC100-277V, 50/60Hz, 0.45A(at 230v);347/480V AC for option
PF: >0.97
IP Grade: IP65
THD: 10%(at 230v, 50Hz)
Surge protection: L/N-PE: 10KV, L-N: 6KV; 20KV version is for option.
LED Parameters
LED chip SMD3030 LED
Light Efficiency 150-160lm/w or 170-180Lm/W
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle  60°, 90°
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color white
Operating Temperature -35℃ – 50℃
Net W./Gross W 5.5KGS /6.5KGS(one piece)
Packing size 40x40x20CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS, SAA,LM79,LM80

2 拷贝 1

100 200w 1

Features:

1.CE&ROHS certified

2.Low power consumption , high luminous efficiency and energy saving

3. Easy to install and use.

4.High efficiency,high accuracy,and long-life constant current LED power supply,the efficiency can reach as high as 91%

5.No risk of mercury emission, No UV or RF interfcernce, No mercury or lead , environmental protection

6.High heat conductivity, low luminous decay, pure light color and no ghosting.

7.Integrative design for heat sink and housing; The LED is closely connected to the surface.
The heat From the LED is removed through the heat dissipation wing and also by air ventilation.

8.The surface is passed through anodic oxidation treatment. Its structure is compact and beautiful.

9.Using high quality aluminum for production,fine workmanship,elegant appearance10.Recommend the use of warm white and white.Long life span with 50,000 hrs.

SIZE 2

22 1

Led canopy light widely used in Gas Station, Shopping Mall, Garage, Station,Workshops, Factories, Warehouse, Storehouses,
Toll stations, Supermarkets, Exhibition halls, Gymnasiums, Square,and some other places where need lighting.
