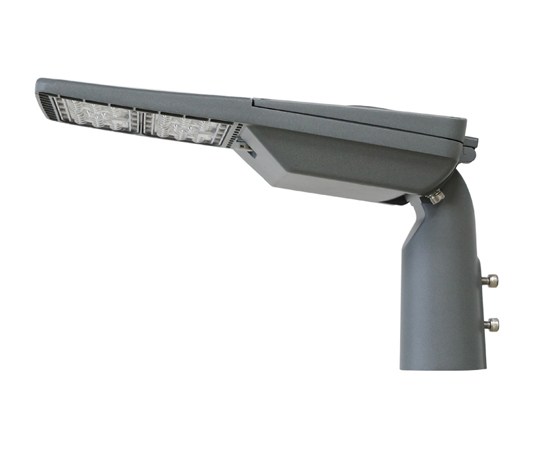

2022 NEW LED Street Light 100W 160-170Lm/W

100

Description

This is our new model street light SL307B in 2022, which can do 30w-150w. Compared with the old SL307, the biggest feature of the new model is high lumens and high light efficiency, which can reach 160-170Lm/W. Multiple installation:Both vertical and horizontal installation are available

Highlights

  • IP66 and IK10 protect
  • High lumen 160-170Lm/W
  • Meanwell or Sosen driver optional
  • Available for CE, RoHS, IP67, IK09, TM21, LM79, LM80
icon01
icon03
icon05
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-SL307B-W100
Rated Power 100W
Input Voltage AC100-277V, 50/60Hz
PF: >0.97
IP Grade: IP66
THD: <10%(at 230v, 50Hz)
Surge protection: L/N-PE: 6KV, L-N: 4KV; 10/20KV version is for option.
LED Parameters
LED chip SMD5050 LED
Light Efficiency 160-170lm/w
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle T2
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Grey
Operating Temperature -35℃ – 50℃
Net W./Gross W 3.5KGS /4.3KGS(one piece)
Packing size 55x28x19CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS, IP67, IK09, TM21, LM79, LM80

SL307B 100W 2 s

SL307B 100W 3 s

100W size 1

Warning:

  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

e475cc4b6e

Led street light widely used in street, highway, garden, pavement, park, residential areas, industrial areas,

etc.

application of street light

In Addition To Quality Lights, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.

Customization

One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.

Warranty

Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
