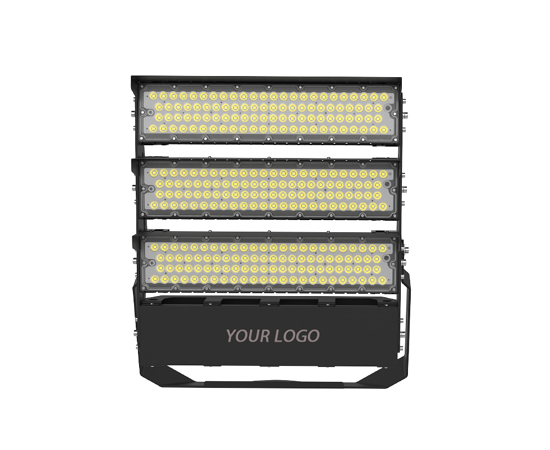

  • 1 5

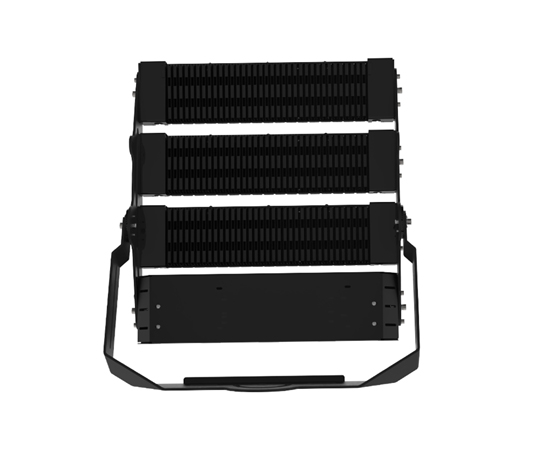

  • 2 5
  • V2

LED Stadium Light SW-TS09-W750 V2

100

Description

New Private mold,Fashionable outlooking,Reliable IP66 waterproof structure design.Perfect corrosion-proof :Pure aluminum for main housing,Galvanized plate+ painting for bracket and driver cover,304 stainless steel screws.Modular design, 500w-1000w wattage can be customized

Highlights

  • Using SMD5050 led chip,high Lumen efficiency 150-160 lm/w
  • Wild view angle for option: 10°, 20°, 40°, 60°, 90°, 50°(asymmetrical)
  • ounting angle adjustable.
  • 5 years warranty,Meanwell driver/Sosen driver+Lumileds chips
icon01
icon03
Specification
Product Dimension
User Manual
Application Cases
Product specification
Model No. SW-TS09-W750 V2
Rated Power 750W
Input Voltage AC100-277V, 50/60Hz; AC347V/480V is for option
PF: >0.97
IP Grade: IP66
THD: 10%(at 230v, 50Hz)
LED Parameters
LED chip SMD5050 LED
Light Efficiency 150-160LM/W
Color Temperature 2700-7000k
CRI >70Ra or 80Ra
Beam Angle 10°, 20°, 40°, 60°, 90°, 50°(asymmetrical)
Mechanical Specification
Body Material Aluminum
Lens Material PC lens
Body color Grey,black
Operating Temperature -35℃ – 50℃
Net W./Gross W 20.5KGS / 22KGS(one piece)
Packing size 83x66x31CM, One piece in one carton
Warranty 5 years warranty
Certificates CE, RoHS, SAA, TUV, CB, ERP, LM79, LM80, IK10, IP66

100W 7 拷贝 4

拷贝

750w

Warning:

  1. Before installation or wiring the lamps, please make sure the power is switched off;
  2. Before cleaning or repairing the lamp, please make sure the power is switched off;
  3. The lamp body will be very hot while working, do not touch it with your hand.

23dce05ee5 1

Led stadium light widely used in shopping mall, billboard, exhibition hall, parking lot, tennis court,

gymnasium, park, garden, building facade, any indoor or outdoor areas.
